LT1580 - Very Low Dropout Regulator

Datasheet Summary

Description

The LT ®1580 is a 7A low dropout regulator designed to power the new generation of microprocessors.

The dropout voltage of this device is 100mV at light loads rising to just 540mV at 7A.

To achieve this dropout, a second low current input voltage 1V greater than the output voltage, is required.

Features

  • s Low Dropout, 540mV at 7A Output Current s Fast Transient Response s Remote Sense s 1mV Load Regulation s Fixed 2.5V Output and Adjustable Output s No Supply Sequencing Problems in Dual Supply Mode U.

📥 Download Datasheet

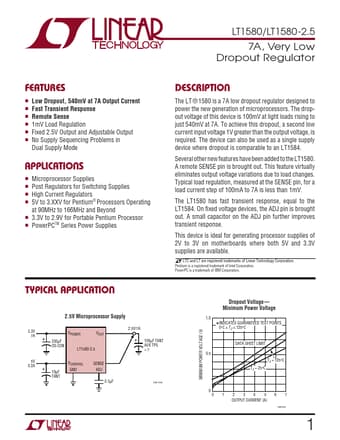

Datasheet preview – LT1580

Datasheet Details

Part number LT1580
Manufacturer Linear
File Size 231.37 KB
Description Very Low Dropout Regulator
Datasheet download datasheet LT1580 Datasheet
Additional preview pages of the LT1580 datasheet.

📁 Similar Datasheet

  • LT1581 - 10A/ Very Low Dropout Regulators (Linear Technology)
  • LT1581-2.5 - 10A/ Very Low Dropout Regulators (Linear Technology)
  • LT1584 - Low Dropout Fast Response Positive Regulators (Linear Technology)
  • LT1585 - Low Dropout Fast Response Positive Regulators (Linear Technology)
  • LT1585A - 5A Low Dropout Fast Response Positive Regulators (Linear Technology)
  • LT1585A - 5A LOW DROPOUT FAST RESPONSE POSITIVE ADJUSTABLE AND FIXED VOLTAGE REGULATOR (Motorola)
  • LT1585A-1.5 - Fixed 1.5V/ 4.6A and 5A Low Dropout/ Fast Response GTL+ Regulators (Linear Technology)
  • LT1587 - Low Dropout Fast Response Positive Regulators (Linear Technology)
  • LT1587-1.5 - Fixed 1.5V/ 3A Low Dropout Fast Response GTL + Regulator (Linear Technology)
  • LT1500 - Adaptive-Frequency Current Mode Switching Regulators (Linear Technology)
Other Datasheets by Linear
  • LT1580-2.5 - Very Low Dropout Regulator
  • LT1585A-3.3 - 5A Low Dropout Fast Response Positive Regulators Adjustable and Fixed
  • LT1567 - Filter Building Block
  • LT1568 - Filter Building Block
  • LT1006ACH - Precision / Single Supply Op Amp
  • LT1006ACJ8 - Precision / Single Supply Op Amp
  • LT1006AMH - Precision / Single Supply Op Amp
  • LT1006AMJ8 - Precision / Single Supply Op Amp

Full PDF Text Transcription

Click to expand full text
LT1580/LT1580 -2.5 7A, Very Low Dropout Regulator U U FEATURES s Low Dropout, 540mV at 7A Output Current s Fast Transient Response s Remote Sense s 1mV Load Regulation s Fixed 2.5V Output and Adjustable Output s No Supply Sequencing Problems in Dual Supply Mode U APPLICATIONS s Microprocessor Supplies s Post Regulators for Switching Supplies s High Current Regulators s 5V to 3.XXV for Pentium® Processors Operating at 90MHz to 166MHz and Beyond s 3.3V to 2.9V for Portable Pentium Processor s PowerPCTM Series Power Supplies DESCRIPTION The LT ®1580 is a 7A low dropout regulator designed to power the new generation of microprocessors. The dropout voltage of this device is 100mV at light loads rising to just 540mV at 7A.
