LT1567 - Filter Building Block

LT1567 Description

LT1567 1.4nV/√Hz 180MHz Filter Building Block U U .

LT1567 Features

* Single-Ended to Differential Conversion
* Low Noise: 1.4nV/√Hz
* 20µVRMS Total Wideband Noise in Filter with 2MHz fC
* Dynamic Range: 104dB SNR at ±5V
* Total Supply Voltage: 2.7V to 12V
* Rail-to-Rail Outputs
* DC Accurate: Op Amp VOS 0.5mV (Typ)
* Trimmed Bandwidt

LT1567 Applications

* It contains two wideband rail-to-rail operational amplifiers, one of them internally configured as a unity-gain inverter. With the addition of a few passive components, the LT1567 becomes a flexible second order filter section with cutoff frequency (fC) up to 5MHz, ideal for antialiasing or for cha

📥 Download Datasheet

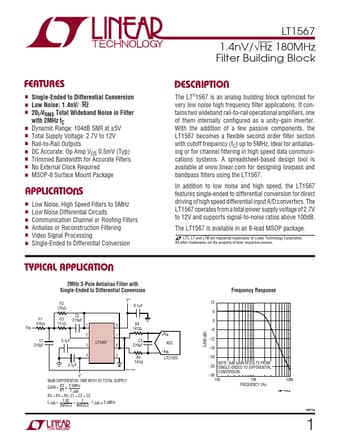

Preview of LT1567 PDF
