LT1560ED - Dot Matrix LED Unit for Indoor Use (Chip Type)

LT1560ED Description

Dot Matrix LED Unit for Indoor Use LT1560ED(Chip Type) s .

LT1560ED Features

* ¡No. of dots : 16!32dots ¡Outline dimensions : 96!192mm ¡Dot size : 3.0!3.0mm ¡Dot pitch : 6.0mm ¡Radiation color : Yellow-green+Red (dichromatic type) ¡Driving method : 1/16 duty dynamic drive LT1560ED s Absolute Maximum Ratings Parameter Supply voltage for IC Supply voltage for LED Input voltage

📥 Download Datasheet

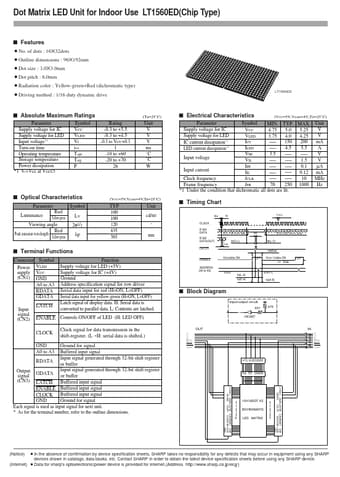

Preview of LT1560ED PDF
datasheet Preview Page 2

Datasheet Details

Part number
LT1560ED
Manufacturer
Sharp Electrionic Components
File Size
209.00 KB
Datasheet
LT1560ED_SharpElectrionicComponents.pdf
Description
Dot Matrix LED Unit for Indoor Use (Chip Type)
