LT1764A - LDO Regulators

Product Overview

Linear

📥 Download Datasheet

LT1764A LDO Regulators by Linear - Datasheet Preview — Datasheet preview – LT1764A

Datasheet Details

Part number	LT1764A
Manufacturer	Linear
File Size	606.33 KB
Description	LDO Regulators
Datasheet	LT1764A Datasheet

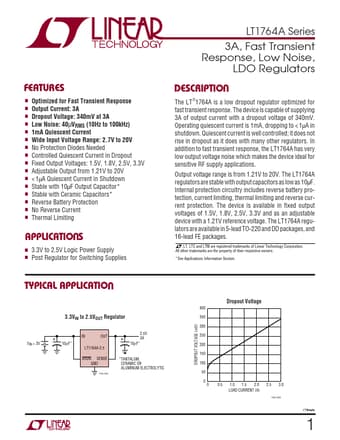

Additional preview pages of the LT1764A datasheet.

Product details

Features

Optimized for Fast Transient Response.
Output Current: 3A.
Dropout Voltage: 340mV at 3A.
Low Noise: 40µVRMS (10Hz to 100kHz).
1mA Quiescent Current.
Wide Input Voltage Range: 2.7V to 20V.
No Protection Diodes Needed.
Controlled Quiescent Current in Dropout.
Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V.
Adjustable Output from 1.21V to 20V.
< 1µA Quiescent Current in Shutdown.
Stable with 10µF Output Capacitor.
Stable with Cer.
