LT1763 Datasheet, Regulators, Linear Technology

LT1763 Features

  • Regulators n Low Noise: 20µVRMS (10Hz to 100kHz) n Output Current: 500mA n Low Quiescent Current: 30µA n Wide Input Voltage Range: 1.8V to 20V n Low Dropout Voltage: 300mV n Very Low Shutdow

PDF File Details

Part number:

LT1763

Manufacturer:

Linear Technology

File Size:

1.14MB

Download:

📄 Datasheet

Description:

Ldo micropower regulators. The LT®1763 series are micropower, low noise, low dropout regulators. The devices are capable of supplying 500mA of output current wi

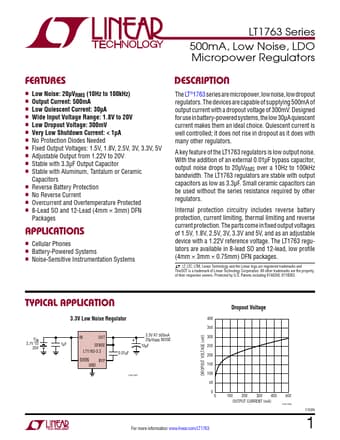

Datasheet Preview: LT1763 📥 Download PDF (1.14MB)
Page 2 of LT1763 Page 3 of LT1763

LT1763 Application

  • Applications n Cellular Phones n Battery-Powered Systems n Noise-Sensitive Instrumentation Systems Description The LT®1763 series are micropower
