LT3095

Dual-Channel Low Noise Bias Generators

LT3095 Features

* nn Generates Two Independent Low Noise Bias Supplies nn Boost Regulator: nn Wide Input Voltage Range: 3V to 20V nn Adjustable Switching Frequency: 450kHz to 2MHz nn Synchronizable to External Clock nn 950mA Power Switches nn Integrated Schottky Diodes nn Internal Frequency Compensation nn Linear Reg

LT3095 General Description

The LT®3095 generates two low noise bias supplies from a common input voltage ranging from 3V to 20V. Each channel includes a fixed frequency, peak current-mode step-up switching regulator and a lo.

LT3095 Datasheet (2.07 MB)

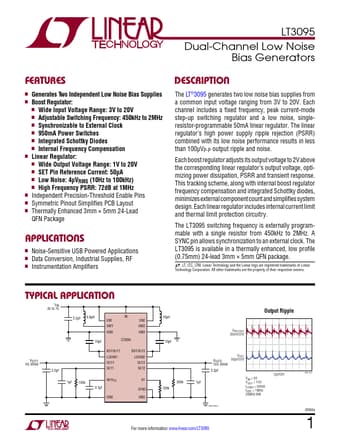

Preview of LT3095 PDF

Datasheet Details

Part number:

LT3095

Manufacturer:

Linear

File Size:

2.07 MB

Description:

Dual-channel low noise bias generators.
