LT3097

Ultra-High PSRR Low Dropout Linear Regulator

LT3097 Features

* APPLICATIONS

* Ultra-low output RMS noise: 0.8 μV rms (10 Hz to 100 kHz)

* Ultra-low output noise spectral density: 2 nV/√Hz (Positive) and 2.2 nV/√Hz (Negative) at 10 kHz

* Ultra-low 1/f noise: 10 µV p-p (Positive) and 3.2 µV p-p (Nega- tive) (0.1 Hz to 10 Hz)

* Ultra-high PSRR: 7

LT3097 General Description

The LT3097 is a dual, positive and negative, high-performance, low-dropout linear regulator featuring Analog Devices, Inc., ultralow noise and ultra-high power supply rejection ratio (PSRR) architecture for powering noise-sensitive applications. Each regulator delivers up to 500 mA with a typical 26.

LT3097 Datasheet (3.36 MB)

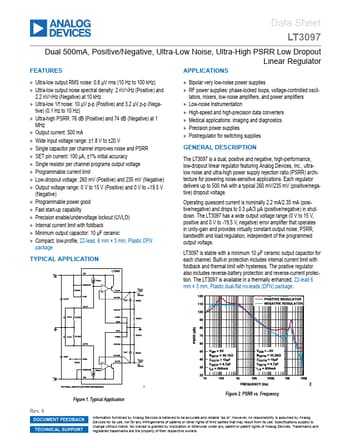

Preview of LT3097 PDF
