LT3757A - SEPIC and Inverting Controller

LT3757A Description

LT3757/LT3757A Boost, Flyback, SEPIC and Inverting Controller .
The LT®3757/LT3757A are wide input range, current mode, DC/DC controllers which are capable of generating either positive or negative output voltages.

LT3757A Features

* Wide Input Voltage Range: 2.9V to 40V n Positive or Negative Output Voltage Programming with a Single Feedback Pin n Current Mode Control Provides Excellent Transient Response n Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor n Synchronizable to an External Clock n

LT3757A Applications

* Automotive and Industrial Boost, Flyback, SEPIC and Inverting Converters n Telecom Power Supplies n Portable Electronic Equipment n Typical Application High Efficiency Boost Converter VIN 8V TO 16V 10µF 25V X5R 100 200k VIN SHDN/UVLO 43.2k SYNC RT SS 41.2k 300kHz 0.1µF VC 22k 6.8nF 10µH VOUT 24

📥 Download Datasheet

Preview of LT3757A PDF

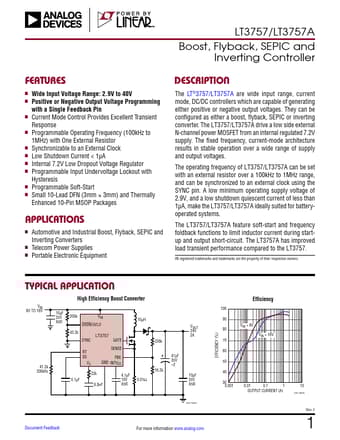

datasheet Preview Page 2 datasheet Preview Page 3
