LTC2152-12

Single 12-Bit ADC

LTC2152-12 Features

* nn 68.5dB SNR nn 90dB SFDR nn Low Power: 347mW/333mW/306mW Total nn Single 1.8V Supply nn DDR LVDS Outputs nn Easy-to-Drive 1.5VP-P Input Range nn 1.25GHz Full Power Bandwidth S/H nn Optional Clock Duty Cycle Stabilizer nn Low Power Sleep and Nap Modes nn Serial SPI Port for Configuration nn Pin-Com

LTC2152-12 General Description

The LTC®2152-12/LTC2151-12/LTC2150-12 are a family of 250Msps/210Msps/170Msps 12-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. They are perfect for demanding communications applications with AC performance that includes 68.5dB SNR and 90dB spurious free dynam.

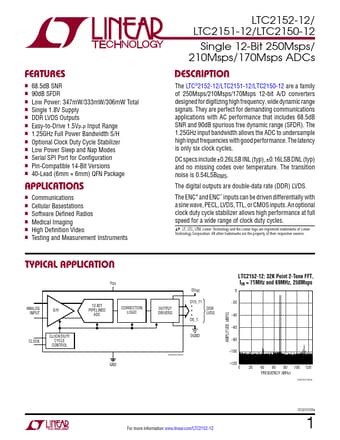

LTC2152-12 Datasheet (672.45 KB)

Preview of LTC2152-12 PDF

Datasheet Details

Part number:

LTC2152-12

Manufacturer:

Linear

File Size:

672.45 KB

Description:

Single 12-bit adc.
