LTC2155-12

Dual 12-Bit 250Msps/210Msps/170Msps ADCs

LTC2155-12 Features

* n 68.5dB SNR n 90dB SFDR n Low Power: 628mW/592mW/545mW Total n Single 1.8V Supply n DDR LVDS Outputs n Easy-to-Drive 1.5VP-P Input Range n 1.25GHz Full-Power Bandwidth S/H n Optional Clock Duty Cycle Stabilizer n Low Power Sleep and Nap Modes n Serial SPI Port for Configuration n Pin Com

LTC2155-12 General Description

The LTC®2157-12/LTC2156-12/LTC2155-12 are a family of dual 250Msps/210Msps/170Msps 12-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. They are perfect for demanding communications applications with AC performance that includes 68.5dB SNR and 90dB spurious free .

LTC2155-12 Datasheet (910.97 KB)

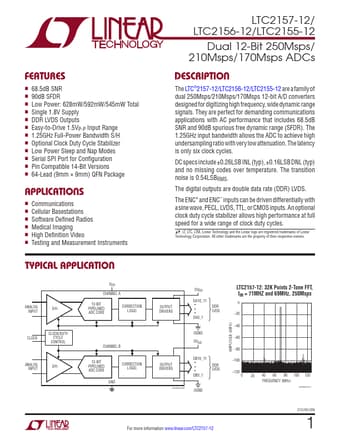

Preview of LTC2155-12 PDF

Datasheet Details

Part number:

LTC2155-12

Manufacturer:

Linear

File Size:

910.97 KB

Description:

Dual 12-bit 250msps/210msps/170msps adcs.
