LTC4234

20A Guaranteed SOA Hot Swap Controller

Linear

LTC4234 Features

* nn Allows Safe Board Insertion into Live Backplane nn Small Footprint nn 4mΩ MOSFET Including RSENSE nn Safe Operating Area Guaranteed at 81W, 30ms nn Wide Operating Voltage Range: 2.9V to 15V nn Adjustable, 11% Accurate Current Limit nn Current and Temperature Monitor Outputs nn Overtemperature Pro

LTC4234 General Description

The LTC®4234 is an integrated solution for Hot Swap™ applications that allows a board to be safely inserted and removed from a live backplane. The part integrates a Hot Swap controller, power MOSFET and current sense resistor in a single package for small form factor applications. The MOSFET Safe Op.

LTC4234 Datasheet (671.99 KB)

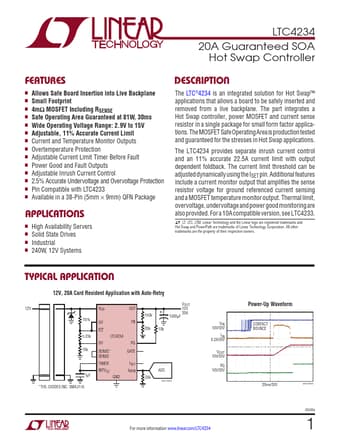

LTC4234 Datasheet Preview — Preview of LTC4234 PDF

Datasheet Details

Part number:

LTC4234

Manufacturer:

Linear

File Size:

671.99 KB

Description:

20a guaranteed soa hot swap controller.
