LTC4236

Dual Ideal Diode-OR and Single Hot Swap Controller

LTC4236 Features

* nn Ideal Diode-OR and Inrush Current Control for Redundant Supplies nn Low Loss Replacement for Power Schottky Diodes nn Enables Safe Board Insertion into a Live Backplane nn 2.9V to 18V Operating Range nn Current Monitor Output nn Controls N-Channel MOSFETs nn Limits Peak Fault Current in ≤ 1µs nn

LTC4236 General Description

The LTC®4236 offers ideal diode-OR and Hot Swap functions for two power rails by controlling external N-channel MOSFETs. MOSFETs acting as ideal diodes replace two high power Schottky diodes and the associated heat sinks, saving power and board area. A Hot Swap control MOSFET allows a board to be sa.

LTC4236 Datasheet (557.91 KB)

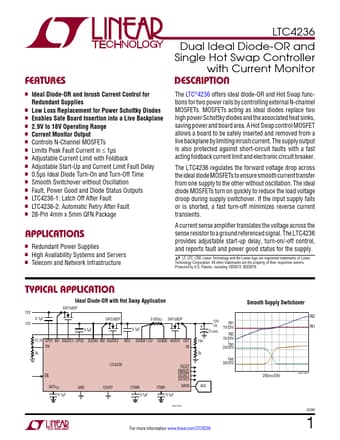

Preview of LTC4236 PDF

Datasheet Details

Part number:

LTC4236

Manufacturer:

Linear

File Size:

557.91 KB

Description:

Dual ideal diode-or and single hot swap controller.
