LTC6930-8.00 Datasheet, Oscillators, Linear

LTC6930-8.00 Features

  • Oscillators n Frequency Error <0.09% Max at 25°C n Start-Up Time <110µs at All Frequencies n 1.7V to 5.5V Single Supply Operation n 105µA Typical Supply Current at 32kHz, V+ = 3V n 490µA Typic

PDF File Details

Part number:

LTC6930-8.00

Manufacturer:

Linear

File Size:

319.27kb

Download:

📄 Datasheet

Description:

32.768khz to 8.192mhz precision upower oscillators. The LTC®6930 series is a family of very low power precision silicon oscillators with a frequency error less than 0.09%. For each osci

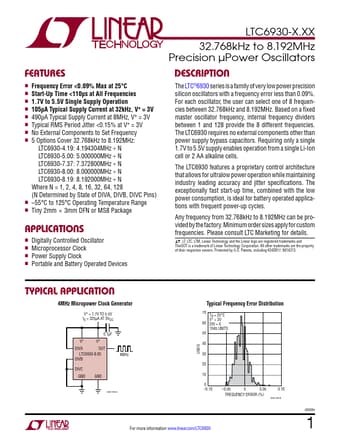

Datasheet Preview: LTC6930-8.00 📥 Download PDF (319.27kb)
Page 2 of LTC6930-8.00 Page 3 of LTC6930-8.00

LTC6930-8.00 Application

  • Applications n Digitally Controlled Oscillator n Microprocessor Clock n Power Supply Clock n Portable and Battery Operated Devices LTC6930-X.XX

TAGS

LTC6930-8.00
32.768kHz
8.192MHz
Precision
uPower
Oscillators
Linear
