LTM4620

Dual 13A or Single 26A DC/DC uModule Regulator

Linear

LTM4620 Features

* n Complete Standalone Dual Output Power Supply n Dual 13A or Single 26A Output n Wide Input Voltage Range: 4.5V to 16V n Output Voltage Range: 0.6V to 2.5V n ±1.5% Maximum Total DC Output Error n Multiphase Current Sharing with Multiple LTM4620s Up to 100A n Differential Remote Sense Amplifie

LTM4620 General Description

The LTM®4620 is a complete dual 13A output switching mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 16V, the LTM4620 supports two outputs each with an output voltage.

LTM4620 Datasheet (703.86 KB)

Rating: 1 ★ (8 votes)

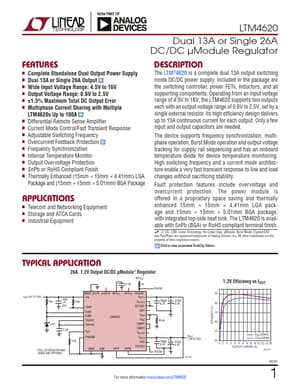

LTM4620 Datasheet Preview — Preview of LTM4620 PDF

Datasheet Details

Part number:

LTM4620

Manufacturer:

Linear

File Size:

703.86 KB

Description:

Dual 13a or single 26a dc/dc umodule regulator.
