LTM4600

10A High Efficiency DC/DC uModule

LTM4600 Features

* n Complete Switch Mode Power Supply n Wide Input Voltage Range: 4.5V to 20V n 10A DC, 14A Peak Output Current n Parallel Two µModule® DC/DC Converters for 20A Output Current n 0.6V to 5V Output Voltage n 1.5% Output Voltage Regulation n Ultrafast Transient Response n Current Mode Control n

LTM4600 General Description

The LTM®4600 is a complete 10A, DC/DC step down power supply. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over an input voltage range of 4.5V to 20V, the LTM4600 supports an output voltage range of 0.6V to 5V, set by a single resi.

LTM4600 Datasheet (422.42 KB)

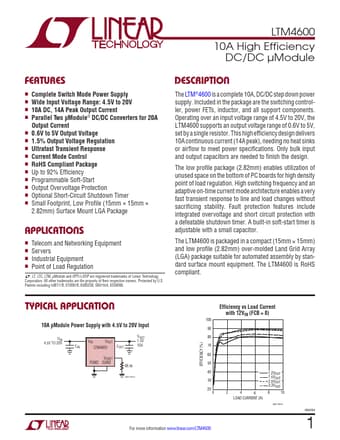

Preview of LTM4600 PDF

Datasheet Details

Part number:

LTM4600

Manufacturer:

Linear Technology

File Size:

422.42 KB

Description:

10a high efficiency dc/dc umodule.
