LTM4601-1

12A uModule Regulators

LTM4601-1 Features

* n Complete Switch Mode Power Supply n Wide Input Voltage Range: 4.5V to 20V n 12A DC Typical, 14A Peak Output Current n 0.6V to 5V Output Voltage n Output Voltage Tracking and Margining n Parallel Multiple µModule Regulators for Current Sharing n Differential Remote Sensing for Precision Regu

LTM4601-1 General Description

The LTM®4601 is a complete 12A step-down switch mode DC/DC power supply with onboard switching controller, MOSFETs, inductor and all support components. The µModule® regulator is housed in small surface mount 15mm × 15mm × 2.82mm LGA and 15mm × 15mm × 3.42mm BGA packages. Operating over an input vol.

LTM4601-1 Datasheet (941.11 KB)

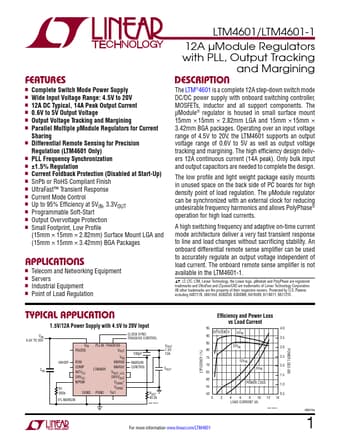

Preview of LTM4601-1 PDF

Datasheet Details

Part number:

LTM4601-1

Manufacturer:

Linear Technology

File Size:

941.11 KB

Description:

12a umodule regulators.
