LTM4601A

12A uModule Regulator

LTM4601A Features

* n Complete Switch Mode Power Supply n Wide Input Voltage Range: 4.5V to 20V n 12A DC Typical, 14A Peak Output Current n 0.6V to 5V Output Voltage n Output Voltage Tracking and Margining n Redundant Mounting Pads for Enhanced Solder- Joint Strength n Parallel Multiple µModules for Current Shar

LTM4601A General Description

The LTM®4601A is a complete 12A step-down switch mode DC/DC power supply with onboard switching controller, MOSFETs, inductor and all support components. The µModule® regulator is housed in a small surface mount 15mm × 15mm × 2.82mm LGA or 15mm × 15mm × 3.42mm BGA package. The LTM4601A LGA and BGA p.

LTM4601A Datasheet (519.32 KB)

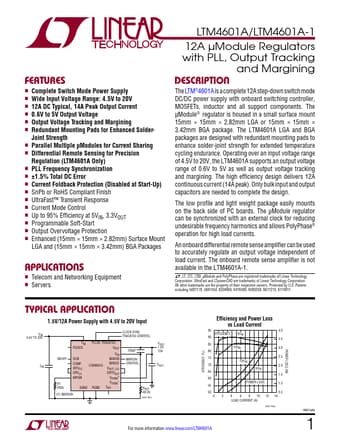

Preview of LTM4601A PDF
