LTC3157 Datasheet - Linearin

2:1 Multiplexer

LTC3157 Features

* Low power dissipation: 1uA

* High bandwidth: 350MHz

* Standard CMOS logic levels

* High speed with improved linearity

* Switches Standard NTSC/PAL Video, Audio, SPDIF and HDTV

* Suitable for Clock Switching, Data Mux’ing, etc.

* Low RDS(ON)

* Break Before Make Circu

LTC3157 General Description

The LTC3157 is an advanced CMOS analog switch fabricated with silicon gate CMOS technology. It achieves very low propagation delay while maintaining CMOS low power dissipation. Analog and digital voltages that may vary across the full power *supply range (from VCC to GND). The Select pin has .

LTC3157 Datasheet (877.16 KB)

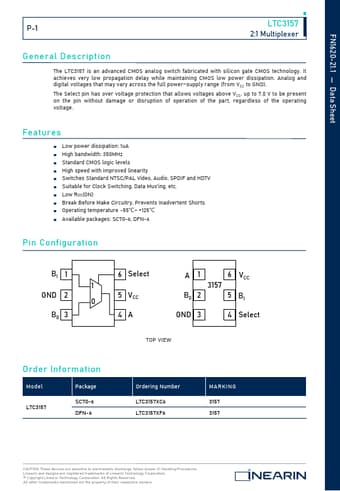

LTC3157 Datasheet Preview — Preview of LTC3157 PDF

Datasheet Details

Part number:

LTC3157

Manufacturer:

Linearin

File Size:

877.16 KB

Description:

2:1 multiplexer.
