LTC5228 Dual SPDT Analog Switch

LTC5228 Description

FN1620-25.1 * Data Sheet P-1 LTC5228 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch .
The LTC5228 is an advanced CMOS analog switch fabricated in Sub. micron silicon gate CMOS technology.

LTC5228 Features

* guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. The switches can handle negative signal down to - 2V. FEATURES
* Low RON: 0.4 Ω @ VCC = 3 V Typically
* Wide Supply Voltage Range: 1.65 V ~ 5.5 V
* Full -2 V ~ VCC Signal Handling Capability

LTC5228 Applications

* in Cell Phone Audio Block Speaker and Earphone Switching Ring-Tone Chip Amplifier Switching Modems
* Available Packages: QFN1.8×1.4-10L, MSOP-10L Order Information Model LTC5228 Package QFN1.8×1.4-10L MSOP-10L Ordering Number Note1 LTC5228YFS10 LTC5228YV10 Packing Option Tape and Reel, 3000

📥 Download Datasheet

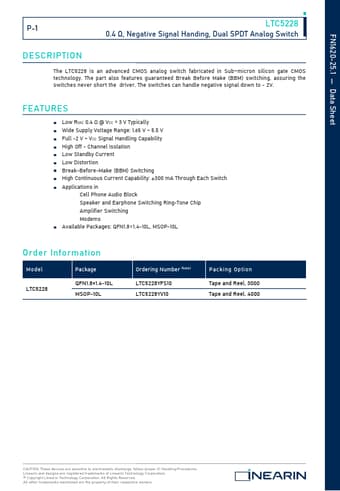

Preview of LTC5228 PDF
