LP0013, LP0013-Link Datasheet - Link-PP

LP0013 10/100Base PC Card Lan Magnetic

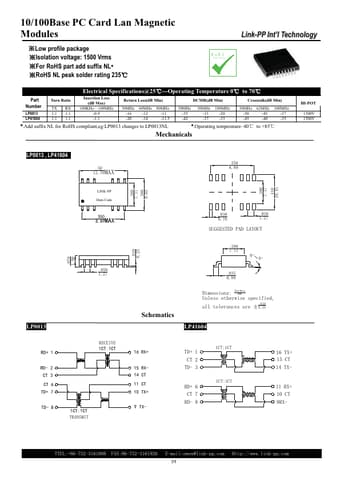

10/100Base PC Card Lan Magnetic Modules Low profile package Isolation voltage: 1500 Vrms For RoHS part add suffix NL RoHS NL peak solder rating 235 Link-PP Int’l Technology Electrical Specifications@25 -Operating Temperature 0 to 70 Part Number LP0013 LP41604 Turn Ratio TX RX 1:1 1:1 1:1 1:1 Insertion Loss (dB Max) 100KHz 100MHz -0.9 -1.1 Return Loss(dB Min) 30MHz 60MHz 80MHz -16 -12 -11 -20 -14 -11.5 DCMR(dB Min) 30MHz -35 -42 50MH.

LP0013-Link-PP.pdf

LP0013 Datasheet Preview — This datasheet PDF includes multiple part numbers: LP0013, LP0013-Link. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LP0013, LP0013-Link

Manufacturer:

Link-PP

File Size:

112.18 KB

Description:

10/100base pc card lan magnetic.

Note:

This datasheet PDF includes multiple part numbers: LP0013, LP0013-Link.
Please refer to the document for exact specifications by model.
