LP5004 1000Base-T Magnetics

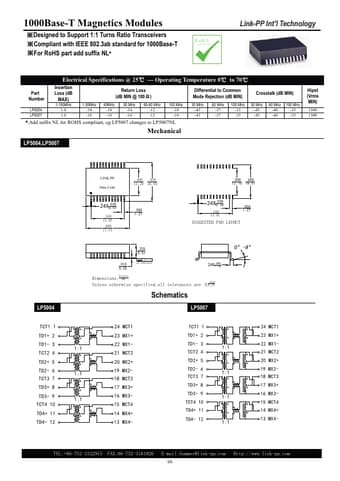

1000Base-T Magnetics Modules Designed to Support 1:1 Turns Ratio Transceivers Compliant with IEEE 802.3ab standard for 1000Base-T For RoHS part add suffix NL Link-PP Int’l Technology Electrical Specifications @ 25 - Operating Temperature 0 to 70 Part Number LP5004 LP5007 Insertion Loss (dB MAX) 1-100MHz 1.0 1.0 1-30MHz -18 -18 Return Loss (dB MIN @ 100) 40MHz -18 -18 50 MHz -16 -16 60-80 MHz -12 -12 100 MHz -10 -10 Differential to Common Mode R.

LP5004-Link-PP.pdf

LP5004 Datasheet Preview — This datasheet PDF includes multiple part numbers: LP5004, LP5004-Link. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LP5004, LP5004-Link

Manufacturer:

Link-PP

File Size:

160.18 KB

Description:

1000base-t magnetics.

Note:

This datasheet PDF includes multiple part numbers: LP5004, LP5004-Link.
Please refer to the document for exact specifications by model.
