LPA4023 VDSL LPAnsformers

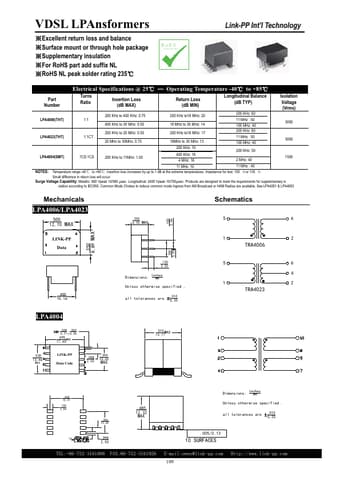

VDSL LPAnsformers Excellent return loss and balance Surface mount or through hole package Supplementary insulation For RoHS part add suffix NL RoHS NL peak solder rating 235 Link-PP Int’l Technology Electrical Specifications @ 25 Operating Temperature -40 to +85 Part Number LPA4006(THT) LPA4023(THT) LPA4004(SMT) Turns Ratio 1:1 1:1CT Insertion Loss (dB MAX) 200 KHz to 400 KHz: 0.75 400 KHz to 30 MHz: 0.50 200 KHz to 20 MHz: 0.50 20 MHz to 30MHz: 0.75 1C.

LPA4006-Link-PP.pdf

LPA4023 Datasheet Preview — This datasheet PDF includes multiple part numbers: LPA4023, LPA4006-Link. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LPA4023, LPA4006-Link

Manufacturer:

Link-PP

File Size:

137.72 KB

Description:

Vdsl lpansformers.

Note:

This datasheet PDF includes multiple part numbers: LPA4023, LPA4006-Link.
Please refer to the document for exact specifications by model.
