LPA2164 Datasheet, Amplifier, Lowpowersemi

LPA2164 Features

  • Amplifier
  • Integrated boost convertor
  • Shutdown current:<3uA
  • Switch on current :2.0A
  • Internal Compensation
  • Max duty cycle: 90%
  • 480KHz fix

PDF File Details

Part number:

LPA2164

Manufacturer:

Lowpowersemi

File Size:

659.11kb

Download:

📄 Datasheet

Description:

8w class-f audio amplifier. The LPA2164 is a 8W, class-F audio amplifier with boost convertor integrated. It offers low THD+N, allowing it to achieve high-qualit

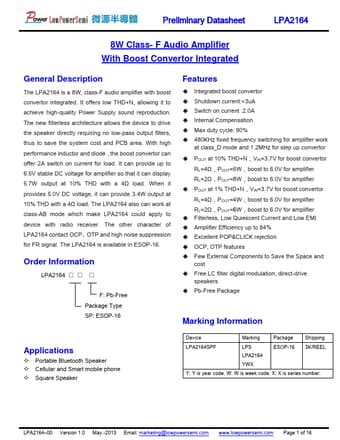

Datasheet Preview: LPA2164 📥 Download PDF (659.11kb)
Page 2 of LPA2164 Page 3 of LPA2164

LPA2164 Application

  • Applications
  • Portable Bluetooth Speaker
  • Cellular and Smart mobile phone
  • Square Speaker Device Marking Package Shipp
