LPA2132 ADSL Line LPAnsformer

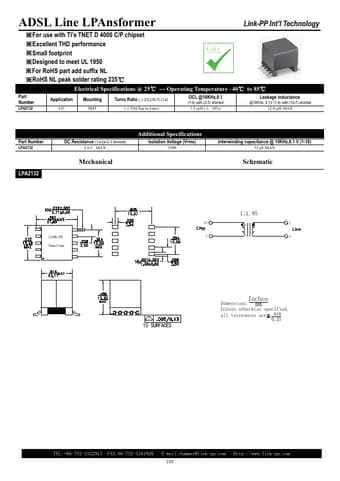

ADSL Line LPAnsformer Link-PP Int’l Technology For use with TI’s TNET D 4000 C/P chipset Excellent THD performance Small footprint Designed to meet UL 1950 For RoHS part add suffix NL RoHS NL peak solder rating 235 Electrical Specifications @ 25 - Operating Temperature 40 to 85 Part Number LPA2132 Application CO Mounting SMT Turns Ratio (%2%)(10-7):(1-4) 1:1.95(Chip to Line) OCL @10KHz,0.1 (1-4) with (2-3) shorted 1.5 mH (% 10%) .

LPA2132-Link-PP.pdf

LPA2132 Datasheet Preview — This datasheet PDF includes multiple part numbers: LPA2132, LPA2132-Link. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LPA2132, LPA2132-Link

Manufacturer:

Link-PP

File Size:

150.81 KB

Description:

Adsl line lpansformer.

Note:

This datasheet PDF includes multiple part numbers: LPA2132, LPA2132-Link.
Please refer to the document for exact specifications by model.
