LPA2136, LPA2136-Link Datasheet - Link-PP

LPA2136 ADSL Line LPAnsformers

ADSL Line LPAnsformers Technology For Analog Devices AD20msp930 Chipset Compatible with ADSL and ADSL over ISDN CenLPAl Office Applications For RoHS part add suffix NL RoHS NL peak solder rating 235 Link-PP Int’l Part Number LPA2136 LPA2137 LPA2168 LPA2188 Mounting THT SMT SMT THT Electrical Specification @ 25 - Operating Temperature 0 to 70 Application ADSL ADSL ADSL/ISDN ADSL/ISDN Turns Ratio (1-4):(10-7) (% 2%) 1:1.1 1:1.1 1:1 1:1 OCL@10 KHz .

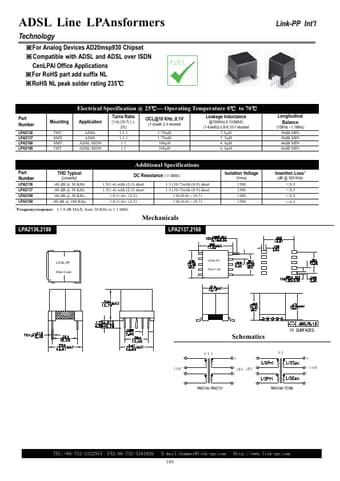

LPA2136-Link-PP.pdf

LPA2136 Datasheet Preview — This datasheet PDF includes multiple part numbers: LPA2136, LPA2136-Link. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LPA2136, LPA2136-Link

Manufacturer:

Link-PP

File Size:

132.14 KB

Description:

Adsl line lpansformers.

Note:

This datasheet PDF includes multiple part numbers: LPA2136, LPA2136-Link.
Please refer to the document for exact specifications by model.
