LPA2139, LPA2139-Link Datasheet - Link-PP

LPA2139 ADSL Line LPAnsformers

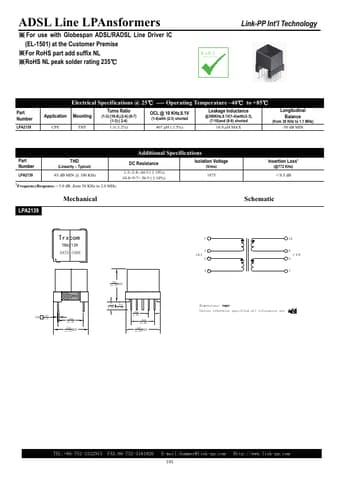

ADSL Line LPAnsformers For use with Globespan ADSL/RADSL Line Driver IC (EL-1501) at the Customer Premise For RoHS part add suffix NL RoHS NL peak solder rating 235 Link-PP Int’l Technology Part Number LPA2139 Application CPE Electrical Specifications @ 25 Operating Temperature 40 to +85 Mounting THT Turns Ratio (1-3):(10-8),(2-4):(9-7) (1-3):( 2-4) 1:1(%2%) OCL @ 10 KHz,0.1V (1-4)with (2-3) shorted 407 μH (%5%) Leakage Inducta.

LPA2139-Link-PP.pdf

LPA2139 Datasheet Preview — This datasheet PDF includes multiple part numbers: LPA2139, LPA2139-Link. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LPA2139, LPA2139-Link

Manufacturer:

Link-PP

File Size:

138.74 KB

Description:

Adsl line lpansformers.

Note:

This datasheet PDF includes multiple part numbers: LPA2139, LPA2139-Link.
Please refer to the document for exact specifications by model.
