LTC0157-00 TOROIDAL COIL TRANSFORMER

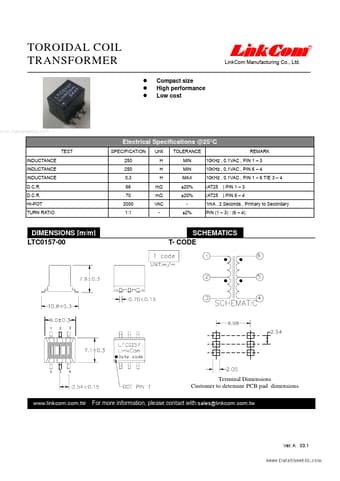

TOROIDAL COIL TRANSFORMER Compact size High performance Low cost R LinkCom Manufacturing Co., Ltd. www.DataSheet4U.com Electrical Specifications @25°C TEST INDUCTANCE INDUCTANCE INDUCTANCE D.C.R. D.C.R. HI-POT TURN RATIO SPECIFICATION 250 250 0.3 66 70 2000 1:1 Unit £g H £g H £g H mΩ mΩ VAC TOLERANCE MIN MIN MAX ±20% ±20% ±2% REMARK 10KHz , 0.1VAC , PIN 1 3 10KHz , 0.1VAC , PIN 6 4 10KHz , 0.1VAC , PIN 1 6 TIE 3 4 (AT25¢J ) PIN 1 3 (AT25¢J ) .

LTC0157-00_LinkCom.pdf

LTC0157-00 Datasheet Preview — Preview of LTC0157-00 PDF

Datasheet Details

Part number:

LTC0157-00

Manufacturer:

LinkCom

File Size:

120.91 KB

Description:

Toroidal coil transformer.
