LTP-3362JD, LTP-3362JD_Lite Datasheet - Lite-On Technology Corporation

Datasheet Details

Part number:

LTP-3362JD, LTP-3362JD_Lite

Manufacturer:

Lite-On Technology Corporation

File Size:

367.06 KB

Description:

LED Display

Note:

This datasheet PDF includes multiple part numbers: LTP-3362JD, LTP-3362JD_Lite.
Please refer to the document for exact specifications by model.

LED Display Product Data Sheet LTP-3362JD Spec No.: DS30-2001-486 Effective Date: 09/16/2003 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp.

/ Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C.

Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-

LTP-3362JD_Lite-OnTechnologyCorporation.pdf

This datasheet PDF includes multiple part numbers: LTP-3362JD, LTP-3362JD_Lite. Please refer to the document for exact specifications by model.

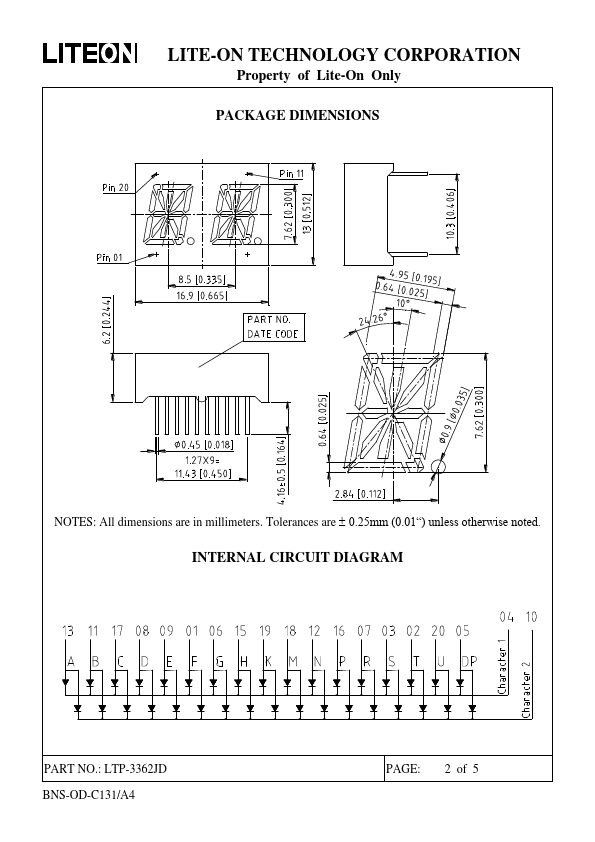

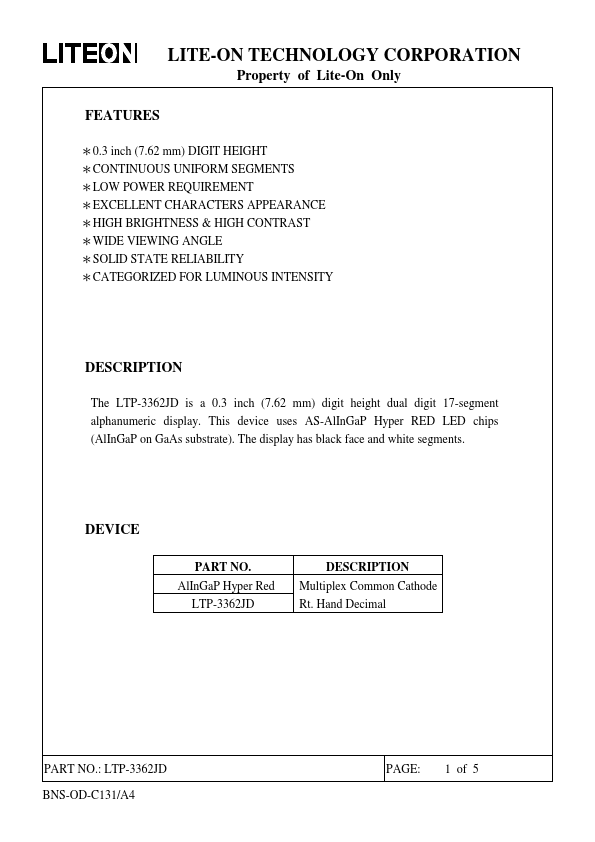

LTP-3362JD Datasheet Preview Page 2 LTP-3362JD Datasheet Preview Page 3

LTP-3362JD, LTP-3362JD_Lite, LED Display

The LTP-3362JD is a 0.3 inch (7.62 mm) digit height dual digit 17-segment alphanumeric display.

This device uses AS-AlInGaP Hyper RED LED chips (AlInGaP on GaAs substrate).

The display has black face and white segments.

DEVICE PART NO.

AlInGaP Hyper Red LTP-3362JD DESCRIPTION Multiplex Common Cat

LTP-3362JD Distributor
