LTP-3784E LED Display

The LTP-3784E is a 0.54 inch (13.8 mm) digit height dual digit 14-segment alphanumeric display. This device utilizes red orange LED chips, which are made from GaAsP on a transparent GaP substrate, and has a gray face and white segments. DEVICE PART NO. RED ORANGE LTP-3784E DESCRIPTION Dual Common.

LTP-3784E_Lite-OnTechnologyCorporation.pdf

This datasheet PDF includes multiple part numbers: LTP-3784E, LTP-3784E_Lite. Please refer to the document for exact specifications by model.

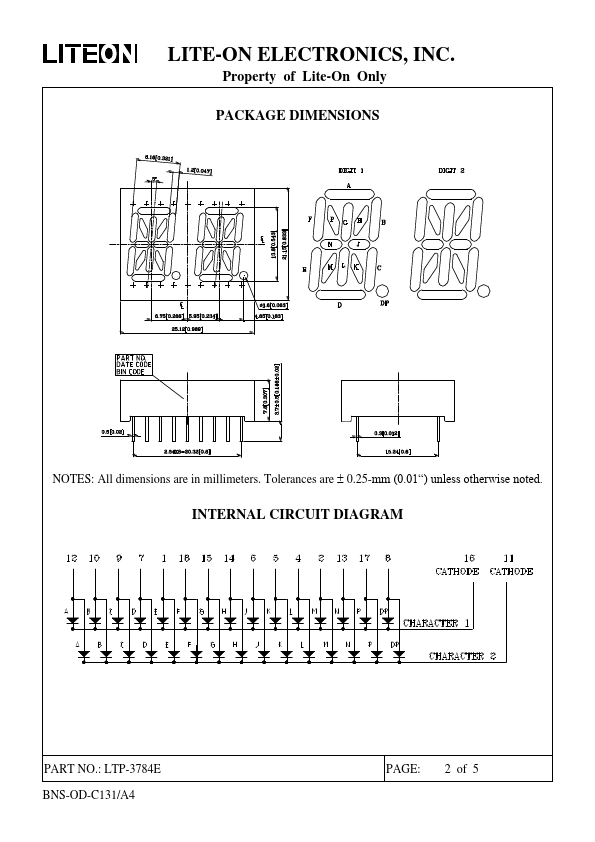

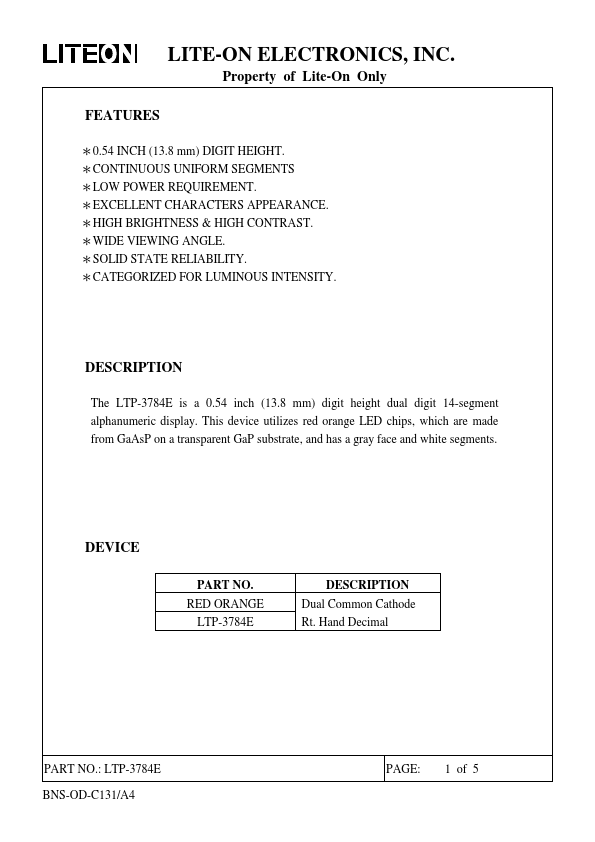

LTP-3784E Datasheet Preview Page 2 LTP-3784E Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-3784E, LTP-3784E_Lite

Manufacturer:

Lite-On Technology Corporation

File Size:

408.20 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTP-3784E, LTP-3784E_Lite.
Please refer to the document for exact specifications by model.
