STPR1610CT, STPR1610CT_Lite - (STPR1610CT / STPR1620CT) SUPER FAST GLASS PASSIVATED RECTIFIERS

Lite-On Technology Corporation

📥 Download Datasheet

STPR1610CT Datasheet Preview — This datasheet PDF includes multiple part numbers: STPR1610CT, STPR1610CT_Lite. Please refer to the document for exact specifications by model.

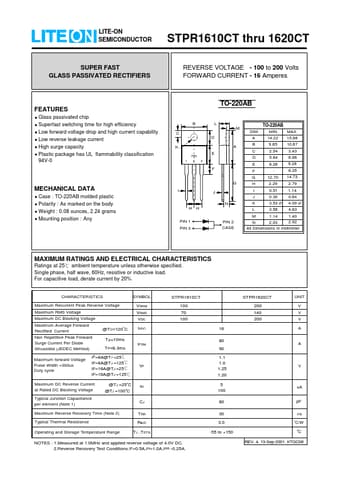

datasheet Preview Page 2

Datasheet Details

Part number	STPR1610CT, STPR1610CT_Lite
Manufacturer	LITEON ↗ Technology Corporation
File Size	38.15 KB
Description	(STPR1610CT / STPR1620CT) SUPER FAST GLASS PASSIVATED RECTIFIERS
Datasheet	STPR1610CT_Lite-OnTechnologyCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: STPR1610CT, STPR1610CT_Lite. Please refer to the document for exact specifications by model.

STPR1610CT Product details

Features

Glass passivated chip Superfast switching time for high efficiency Low forward voltage drop and high current capability Low reverse leakage current High surge capacity Plastic package has UL flammability classification 94V-0 B C K PIN 1 2 3 TO-220AB L M D A E DIM. A B C D E F G F G H I J K L M TO-220AB MAX. MIN. 14.22 15.88 10.67 9.65 3.43 2.54 6.86 5.84 9.28 8.26 12.70 2.29 0.51 0.30 3.53 3.56 6.35 14.73 2.79 1.14 0.64 4.09 4.83.
