SF50FG, SF50DG_Lite (SF50xG) SUPER FAST GLASS PASSIVATED RECTIFIERS

SF50FG Description

www.DataSheet4U.com LITE-ON SEMICONDUCTOR SF50BG thru SF50JG REVERSE VOLTAGE - 100 to 600 Volts FORWARD CURRENT - 5.0 Amperes SUPER FAST GLASS PASS.

SF50FG Features

* Glass passivated chip Super fast switching time for high efficiency Low forward voltage drop and high current capability Low reverse leakage current Plastic material has UL flammability classification 94V-0 A DO-201AD B A C D MECHANICAL DATA Case : JEDEC DO-201AD molded plastic Polarity : Color b

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SF50FG, SF50DG_Lite. Please refer to the document for exact specifications by model.

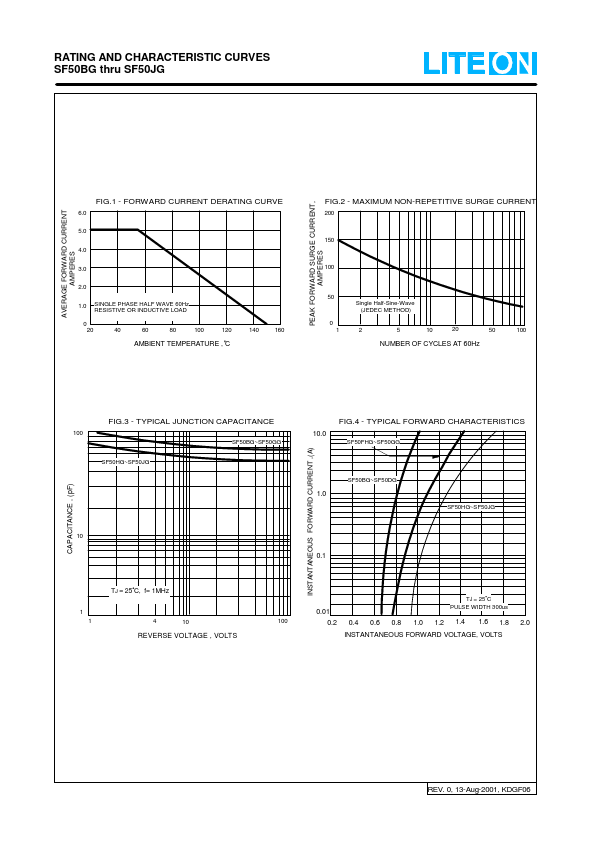

datasheet Preview Page 2

Datasheet Details

Part number
SF50FG, SF50DG_Lite
Manufacturer
Lite-On Technology
File Size
62.78 KB
Datasheet
SF50DG_Lite-OnTechnology.pdf
Description
(SF50xG) SUPER FAST GLASS PASSIVATED RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SF50FG, SF50DG_Lite.
Please refer to the document for exact specifications by model.
