TC2600H

SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE

TC2600H Features

* Oxide Glass Passivated Junction Bidirectional protection in a single device Surge capabilities up to 100A @ 10/1000us or 400 @ 8/20us High off state Impedance and low on state voltage Plastic material has UL flammability classification 94V-0 SMC SMC A DIM. A B C B C D E MIN. 6.60 5.59 2.92 0.15 7.7

TC2600H Datasheet (74.54 KB)

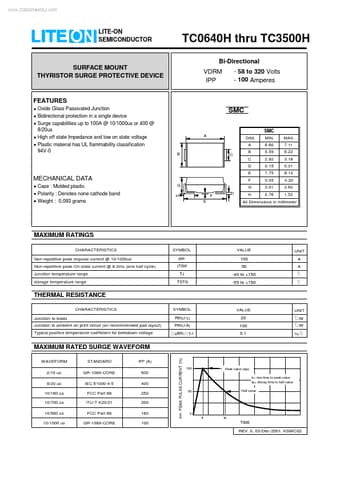

Preview of TC2600H PDF

Datasheet Details

Part number:

TC2600H

Manufacturer:

Lite-On Technology

File Size:

74.54 KB

Description:

Surface mount thyristor surge protective device.
www.DataSheet4U.com LITE-ON SEMICONDUCTOR TC0640H thru TC3500H Bi-Directional VDRM IPP - 58 to 320 Volts - 100 Amperes SURFACE MOUNT THYRISTOR SURG.
