LSP3124, LSP3124-Lite Datasheet - Lite-On

LSP3124 150KHZ 3A PWM Buck DC/DC Converter

* z z z APPLICATIONS Simple High-efficiency step-down regulator On-card switching regulators Positive to negative converter The LSP3124 series are monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 3 A load without additio nal transistor component..

LSP3124 Features

* Output voltage: 3.3V, 5.0V, 12V, and adjustable output version Adjustable version output voltage range:1.23V to 18V±4% 150KHz±15% fixed switching frequency Voltage mode non-synchronous PWM control Thermal-shutdown and current-limit protection ON/OFF shutdown control input Operating voltage can be up

LSP3124-Lite-On.pdf

This datasheet PDF includes multiple part numbers: LSP3124, LSP3124-Lite. Please refer to the document for exact specifications by model.

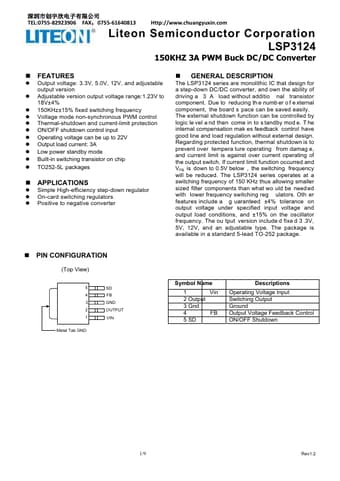

LSP3124 Datasheet Preview Page 2 LSP3124 Datasheet Preview Page 3

Datasheet Details

Part number:

LSP3124, LSP3124-Lite

Manufacturer:

Lite-On

File Size:

438.52 KB

Description:

150khz 3a pwm buck dc/dc converter.

Note:

This datasheet PDF includes multiple part numbers: LSP3124, LSP3124-Lite.
Please refer to the document for exact specifications by model.
