LSP3130, LSP3130-Lite Datasheet - Lite-On

LSP3130 PWM Control 2A Step-Down Converter

LSP3130 consists of step-down switching regulator with PWM control. These devices include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. LSP3130 provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is a.

LSP3130 Features

* z Input voltage: 3.6V to 18V. z Output voltage: 0.8V to VCC. z Duty ratio: 0% to 100% PWM control z Oscillation frequency: 300KHz typ. z Soft-start, Current limit, Enable function z Thermal Shutdown function z Built-in internal SW P-channel MOSFET z SOP8L Package.

* TYPICAL APPLICATION z PC

LSP3130-Lite-On.pdf

This datasheet PDF includes multiple part numbers: LSP3130, LSP3130-Lite. Please refer to the document for exact specifications by model.

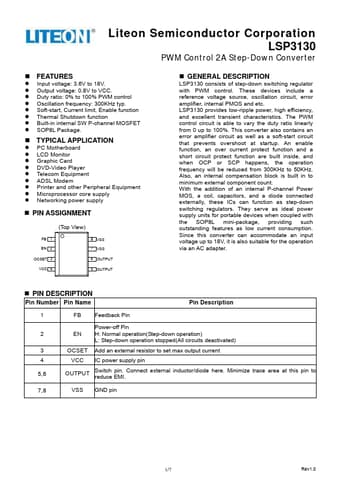

LSP3130 Datasheet Preview Page 2 LSP3130 Datasheet Preview Page 3

Datasheet Details

Part number:

LSP3130, LSP3130-Lite

Manufacturer:

Lite-On

File Size:

313.08 KB

Description:

Pwm control 2a step-down converter.

Note:

This datasheet PDF includes multiple part numbers: LSP3130, LSP3130-Lite.
Please refer to the document for exact specifications by model.
