LTST-C171AKT, LTST-C171AKT-Lite Datasheet - Lite-On

LTST-C171AKT, LTST-C171AKT-Lite, SMD LED

SMD LED Product Data Sheet LTST-C171AKT Spec No.:DS-22-99-0170 Effective Date: 12/28/2023 Revision: D LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Tec.

datasheet Preview Page 1 from Datasheet4u.com

LTST-C171AKT-Lite-On.pdf

LTST-C171AKT Datasheet Preview — This datasheet PDF includes multiple part numbers: LTST-C171AKT, LTST-C171AKT-Lite. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTST-C171AKT, LTST-C171AKT-Lite

Manufacturer:

Lite-On

File Size:

628.98 KB

Description:

SMD LED

Note:

This datasheet PDF includes multiple part numbers: LTST-C171AKT, LTST-C171AKT-Lite.
Please refer to the document for exact specifications by model.

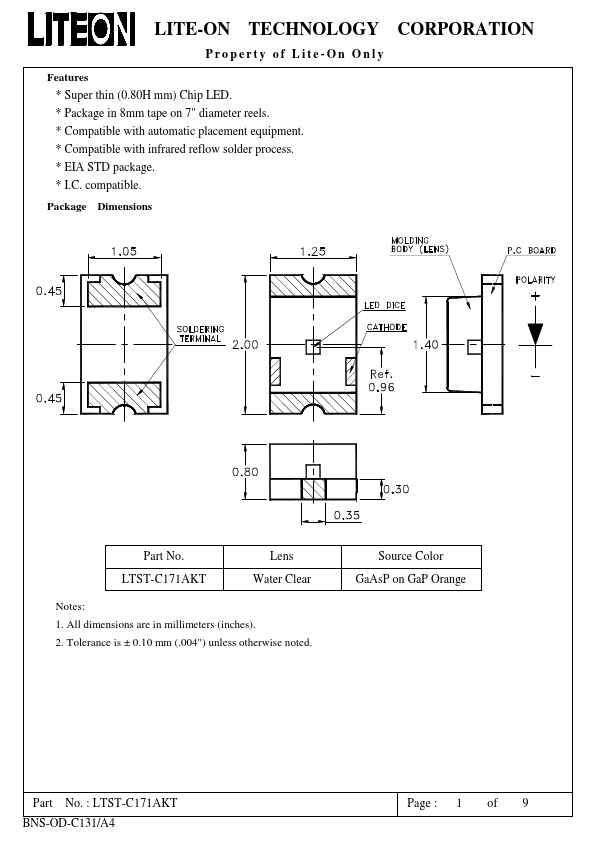

Features

* Super thin (0.80H mm) Chip LED.
* Package in 8mm tape on 7" diameter reels.
* Compatible with automatic placement equipment.
* Compatible with infrared reflow solder process.
* EIA STD package.
* I. C. compatible. Package Dimensions Part No. LTST-C171AKT Lens Water Clear

Applications

* . Consult Liteon’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support s
