LTST-C170TGKT - SMD LED

Datasheet Summary

Features

  • Meet ROHS, Green Product.
  • Package In 8mm Tape On 7" Diameter Reels.
  • EIA STD package.
  • I. C. compatible.
  • Compatible With Automatic Placement Equipment.

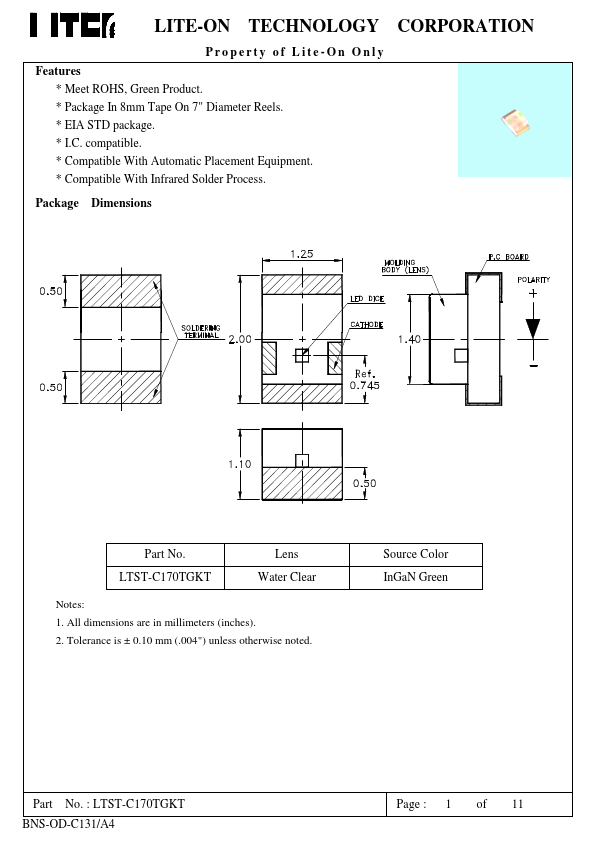

  • Compatible With Infrared Solder Process. Package Dimensions Part No. LTST-C170TGKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted. Source Color InGaN Green Part No. : LTST-C170TGKT BNS-OD-C131/A4 Page : 1 of 11 LITE-ON.

📥 Download Datasheet

Datasheet preview – LTST-C170TGKT

Datasheet Details

Part number LTST-C170TGKT
Manufacturer LITEON
File Size 571.27 KB
Description SMD LED
Datasheet download datasheet LTST-C170TGKT Datasheet

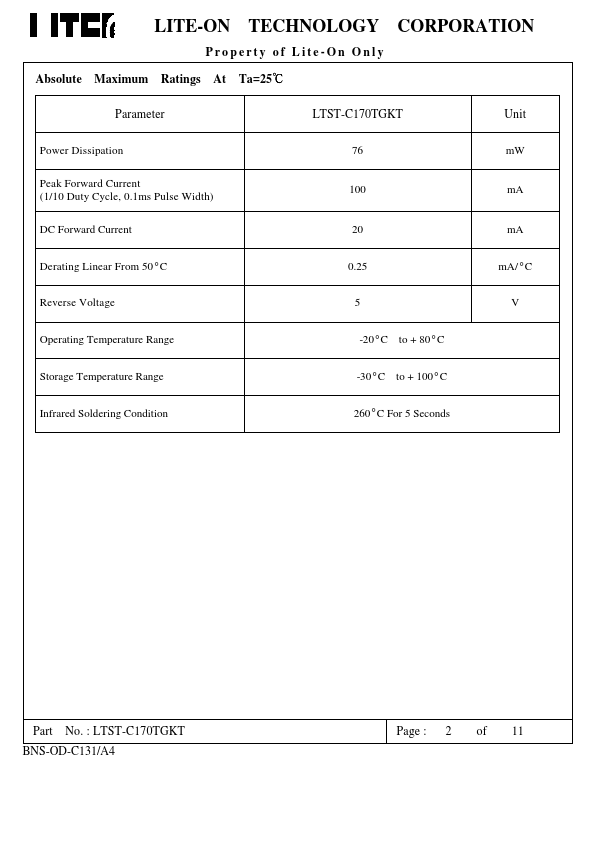

Additional preview pages of the LTST-C170TGKT datasheet.

📁 Similar Datasheet

Other Datasheets by LITEON

Full PDF Text Transcription

Click to expand full text
SMD LED Product Data Sheet LTST-C170TGKT Spec No. :DS22-2000-025 Effective Date: 12/13/2023 Revision: H LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON TECHNOLOGY CORPORATION Property of Lite-On Only Features * Meet ROHS, Green Product. * Package In 8mm Tape On 7" Diameter Reels. * EIA STD package. * I.C. compatible. * Compatible With Automatic Placement Equipment. * Compatible With Infrared Solder Process. Package Dimensions Part No. LTST-C170TGKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
