MOC3021S

Photocoupler

MOC3021S Features

* Isolation voltage between input and output Viso : 5,000Vrms

* 6pin DIP photocoupler, triac driver output

* High repetitive peak off-state voltage VDRM : Min. 400V

* High critical rate of rise of off-state voltage( dV/dt : MIN. 1000V / s )

* Dual-in-line package : MOC3020, MOC3

MOC3021S Datasheet (333.58 KB)

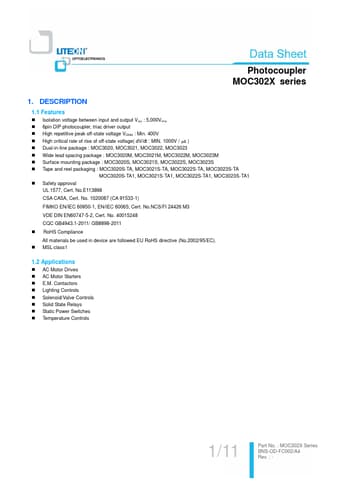

Preview of MOC3021S PDF

Datasheet Details

Part number:

MOC3021S

Manufacturer:

Lite-On

File Size:

333.58 KB

Description:

Photocoupler.
