0308.250 Datasheet - Littelfuse

0308.250 Special Application Fuses

The 308 Series offers a range of surface mountable encapsulated fuses certified as intrinsically safe components that can be used in hazardous locations. Ideal for use in oil, gas, mine, chemical, pharmaceutical and process industries, the 308 Series surface mountable fuse was designed to limit the .

Special Application Fuses Intrinsically Safe > Surface Mount > 308 Series 308 Series 30V Intrinsically Safe Fuse Pb RoHS Agency Approvals Agency Agency File Number DEMKO 15 ATEX 1439U II 1 G Ex ia IIC E358130 IECEx UL 15.0011U Ex ia IIC Ampere Rating 0.250A 1.5A 0.250A 1.5A 0.250A 1.5A Reference Standards Certification ATEX IECEx UL cUL Standards EN 60079-0, EN 60079-11 IEC 60079-0, IEC 60079-11 UL 913, UL 60079-0, UL 60079-11 CAN/CSA C22.2 No. 157, CAN/CSA .

0308.250 Features

* Surface Mountable

* Encapsulated and sealed (0.7mm minimum)

* Designed for operation in a range of hazardous area applications requiring 30V peak

* RoHS compliant and Pb-Free

* Fully compatible with lead-free solder alloys and higher temperature profi

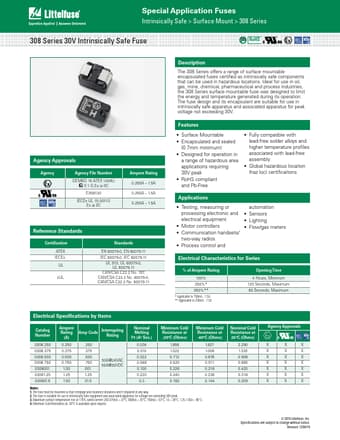

0308.250 Datasheet (529.56 KB)
