030N10N5 - MOSFET

030N10N5 Description

IPP030N10N5 MOSFET OptiMOSª5 Power-Transistor, 100 V .

030N10N5 Features

* Ideal for high frequency switching and sync. rec.
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, normal level
* 100% avalanche tested
* Pb-free plating; RoHS compliant
* Qualified according to J

030N10N5 Applications

* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 3.0 mΩ ID 120 A Qoss 142 nC QG(0V. .10V) 112 nC TO-220-3 tab Drain Pin 2, Tab Gate Pin 1 Source Pin 3 Type / Ordering Code IPP030N10N5 Package P

📥 Download Datasheet

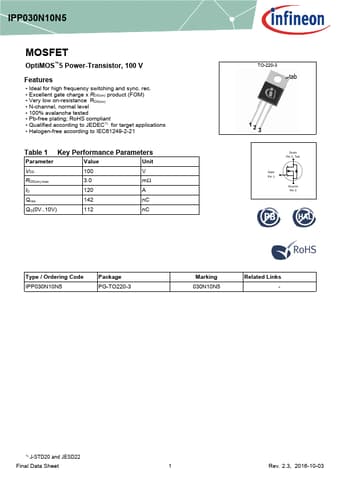

Preview of 030N10N5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
