* q Breakdown voltage range 6.8 - 200 volts q Glass passivated junction q Excellent clamping capability q Low zener impedance q 100% surge tested q -55°C to +150°C q Hermetically sealed q Bi-directional MAXIMUM RATING q Peak Pulse Power (Ppk): 15000 Watts (10 x 1000µs)@25°C (see diagram on page 3 for
1N6068A
96.79 KB
Metal axial transient voltage suppressors.

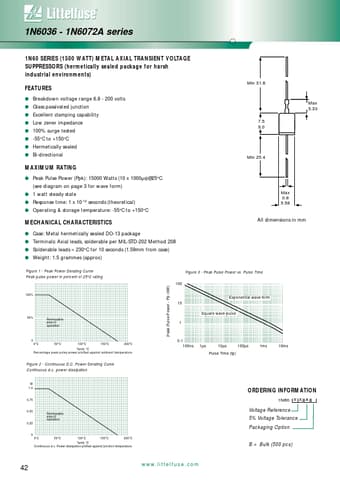

1N6036 - 1N6072A series 1N60 SERIES (1500 WATT) METAL AXIAL TRANSIENT VOLTAGE SUPPRESSORS (hermetically sealed package for harsh industrial environme.
