1SMB10CAT3G Datasheet - Littelfuse

TVS Diodes

1SMB10CAT3G Features

* Maximum Ratings and Thermal Characteristics Parameter Symbol Value Unit Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse Width = 1 ms PPK 600 W

* Working Peak Reverse Voltage Range

* 10 V to 75 V

* Standard Zener Breakdown Voltage Range

* 11.7 V to 91.7 V

1SMB10CAT3G General Description

The 1SMB10CAT3Gv series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The 1SMB10CAT3G series is supplied in the Littelfuse exclusive, cost-effe.

1SMB10CAT3G Datasheet (1.19 MB)

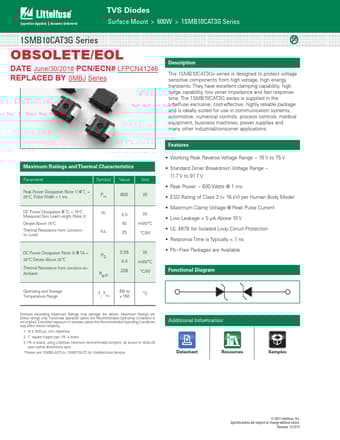

1SMB10CAT3G Datasheet Preview — Preview of 1SMB10CAT3G PDF

Datasheet Details

Part number:

1SMB10CAT3G

Manufacturer:

Littelfuse ↗

File Size:

1.19 MB

Description:

Tvs diodes.
TVS Diodes Surface Mount > 600W > 1SMB10CAT3G Series 1SMB10CAT3G Series OBSOLETE/EOL DATE June/30/2018 PCN/ECN# LFPCN41246 REPLACED BY SMBJ Series P.
