1SMB100AT3 - PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS

Motorola Inc

Datasheet Details

Part number	1SMB100AT3
Manufacturer	Motorola Inc
File Size	50.95 KB
Description	PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS

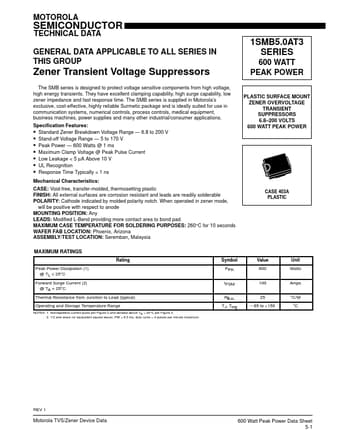

Datasheet	1SMB100AT3_MotorolaInc.pdf

Standard Zener Breakdown Voltage Range.
6.8 to 200 V Stand-off Voltage Range.
5 to 170 V Peak Power.
600 Watts @ 1 ms Maximum Clamp Voltage @ Peak Pulse Current Low Leakage < 5 µA Above 10 V UL Recognition Response Time Typically < 1 ns Mechanical Characteristics: CASE: Void-free, transfer-molded, thermosetting plastic FINISH: All external surfaces are corrosion resistant and leads are readily solderable.
