1SMB11AT3 Datasheet - Motorola Inc

1SMB11AT3 PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS

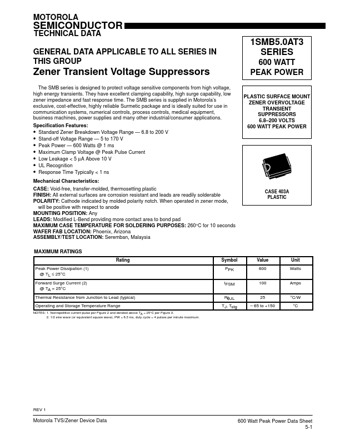

MOTOROLA SEMICONDUCTOR TECHNICAL DATA GENERAL DATA APPLICABLE TO ALL SERIES IN THIS GROUP 1SMB5.0AT3 SERIES 600 WATT PEAK POWER PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS 6.8 200 VOLTS 600 WATT PEAK POWER Zener Transient Voltage Suppressors The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMB ser.

1SMB11AT3 Features

* Standard Zener Breakdown Voltage Range

* 6.8 to 200 V Stand-off Voltage Range

* 5 to 170 V Peak Power

* 600 Watts @ 1 ms Maximum Clamp Voltage @ Peak Pulse Current Low Leakage < 5 µA Above 10 V UL Recognition Response Time Typically < 1 ns Mechanical Characteristics: CASE:
