1SMB18AT3G

600 Watt Peak Power Zener TVS

1SMB18AT3G Features

* Working Peak Reverse Voltage Range

* 5.0 V to 170 V

* Standard Zener Breakdown Voltage Range

* 6.7 V to 199 V

* Peak Power

* 600 W @ 1.0 ms

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* Maximum Clamp Voltage @ Peak Pulse Current

* Low Leak

1SMB18AT3G Datasheet (1.25 MB)

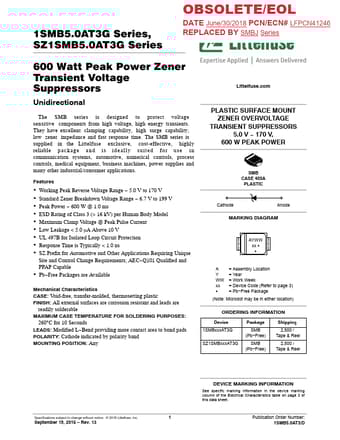

Preview of 1SMB18AT3G PDF

Datasheet Details

Part number:

1SMB18AT3G

Manufacturer:

Littelfuse ↗

File Size:

1.25 MB

Description:

600 watt peak power zener tvs.
1SMB5.0AT3G Series, SZ1SMB5.0AT3G Series OBSOLETE/EOL DATE June/30/2018 PCN/ECN# LFPCN41246 REPLACED BY SMBJ Series 600 Watt Peak Power Zener Transi.
