* Working Peak Reverse Voltage Range
* 5.0 V to 170 V
* Standard Zener Breakdown Voltage Range
* 6.7 V to 199 V
* Peak Power
* 600 W @ 1.0 ms
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Maximum Clamp Voltage @ Peak Pulse Current
* Low Leak
1SMB28AT3G Datasheet (1.25 MB)
1SMB28AT3G
1.25 MB
600 watt peak power zener tvs.

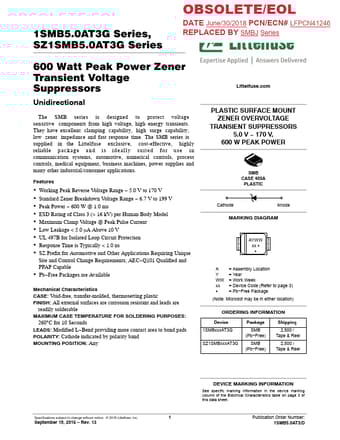

1SMB5.0AT3G Series, SZ1SMB5.0AT3G Series
OBSOLETE/EOL
DATE June/30/2018 PCN/ECN# LFPCN41246 REPLACED BY SMBJ Series
600 Watt Peak Power Zener Transi.
