1SMB5.0AT3G 600 Watt Peak Power Zener TVS

1SMB5.0AT3G Description

1SMB5.0AT3G Series, SZ1SMB5.0AT3G Series OBSOLETE/EOL DATE June/30/2018 PCN/ECN# LFPCN41246 REPLACED BY SMBJ Series 600 Watt Peak Power Zener Transi.

1SMB5.0AT3G Features

* Working Peak Reverse Voltage Range
* 5.0 V to 170 V
* Standard Zener Breakdown Voltage Range
* 6.7 V to 199 V
* Peak Power
* 600 W @ 1.0 ms
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Maximum Clamp Voltage @ Peak Pulse Current
* Low Leak

📥 Download Datasheet

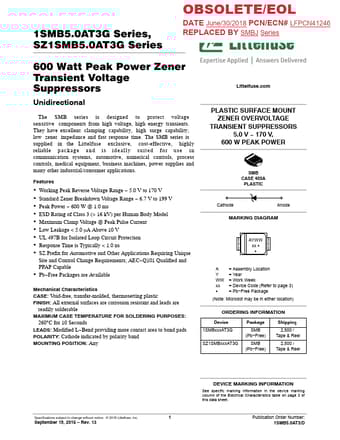

Preview of 1SMB5.0AT3G PDF
datasheet Preview Page 2 datasheet Preview Page 3
