* Standard Zener Breakdown Voltage Range
* 6.8 to 200 V Stand-off Voltage Range
* 5 to 170 V Peak Power
* 600 Watts @ 1 ms Maximum Clamp Voltage @ Peak Pulse Current Low Leakage < 5 µA Above 10 V UL Recognition Response Time Typically < 1 ns Mechanical Characteristics: CASE:
1SMB5.0AT3 Datasheet (50.95 KB)
1SMB5.0AT3
Motorola Inc
50.95 KB
Plastic surface mount zener overvoltage transient suppressors.

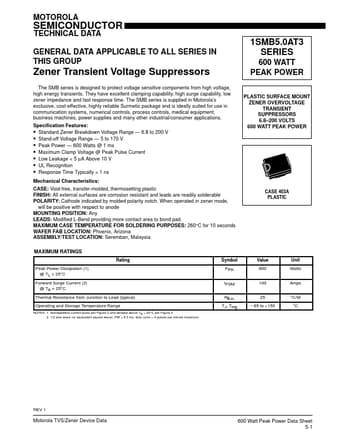

MOTOROLA
SEMICONDUCTOR
TECHNICAL DATA GENERAL DATA APPLICABLE TO ALL SERIES IN THIS GROUP
1SMB5.0AT3 SERIES
600 WATT PEAK POWER
PLASTIC SURFACE MOUN.
