1SMC5.0AT3G - 1500 Watt Peak Power Zener Transient Voltage Suppressors

Littelfuse

📥 Download Datasheet

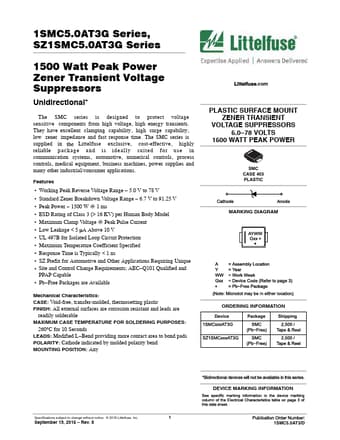

1SMC5.0AT3G Datasheet Preview — Preview of 1SMC5.0AT3G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	1SMC5.0AT3G
Manufacturer	Littelfuse ↗
File Size	620.53 KB
Description	1500 Watt Peak Power Zener Transient Voltage Suppressors
Datasheet	1SMC5.0AT3G-Littelfuse.pdf

1SMC5.0AT3G Product details

Features

Working Peak Reverse Voltage Range.
5.0 V to 78 V.
Standard Zener Breakdown Voltage Range.
6.7 V to 91.25 V.
Peak Power.
1500 W @ 1 ms.
ESD Rating of Class 3 (> 16 KV) per Human Body Model.
Maximum Clamp Voltage @ Peak Pulse Current.
Low Leakage < 5 A Above 10 V.
UL 497B for Isolated Loop Circuit Protection.
Ma.
