1SMC51AT3G - 1500 Watt Peak Power Zener Transient Voltage Suppressors

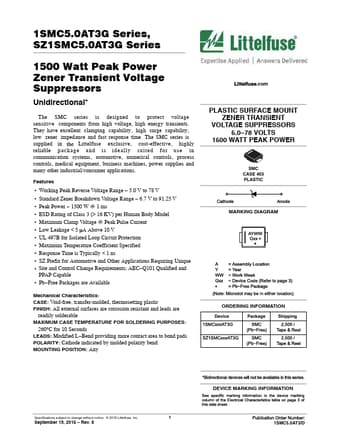

1SMC5.0AT3G Series, SZ1SMC5.0AT3G Series 1500 Watt Peak Power Zener Transient Voltage Suppressors Unidirectional The SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMC series is supplied in Littelfuse exclusive, cost-effective, highly reliable package and is ideally suited for use in communication systems, automo.

1SMC51AT3G Features

* Working Peak Reverse Voltage Range

* 5.0 V to 78 V

* Standard Zener Breakdown Voltage Range

* 6.7 V to 91.25 V

* Peak Power

* 1500 W @ 1 ms

* ESD Rating of Class 3 (> 16 KV) per Human Body Model

* Maximum Clamp Voltage @ Peak Pulse Cu
