B1101UA

SLIC Protection Thyristors

B1101UA Features

* Low voltage overshoot

* Low on-state voltage

* Does not degrade surge capability after multiple surge events within limit.

* Fails short circuit when surged in excess of ratings

* Single-port protection

* Gate triggered tracking device

B1101UA General Description

The Battrax® Protection Thyristor series offers programmable SIDACtor® overvoltage protection components for SLIC applications. The Single Port Negative Battrax® Protection Thyristor series provides a programmable device that is referenced to a negative voltage souce while internal diodes provide p.

B1101UA Datasheet (1.10 MB)

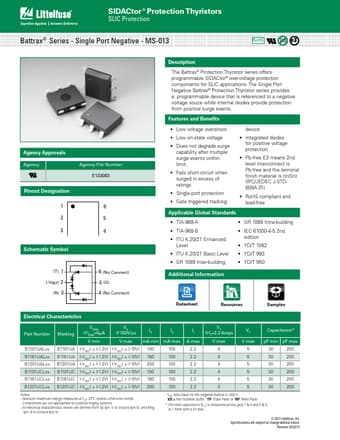

Preview of B1101UA PDF

Datasheet Details

Part number:

B1101UA

Manufacturer:

Littelfuse ↗

File Size:

1.10 MB

Description:

Slic protection thyristors.
SIDACtor® Protection Thyristors SLIC Protection Battrax® Series - Single Port Negative - MS-013 RoHS Pb e3 Agency Approvals Agency Agency File Num.
